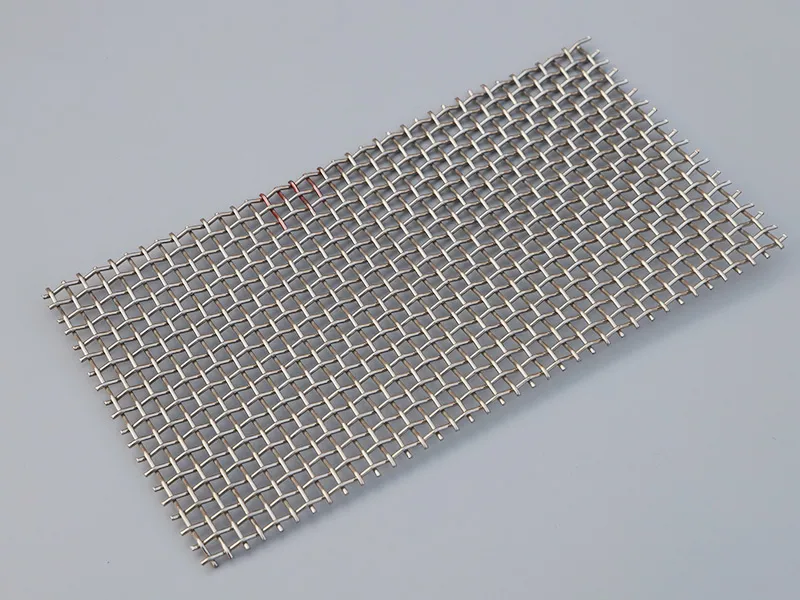

Square Mesh

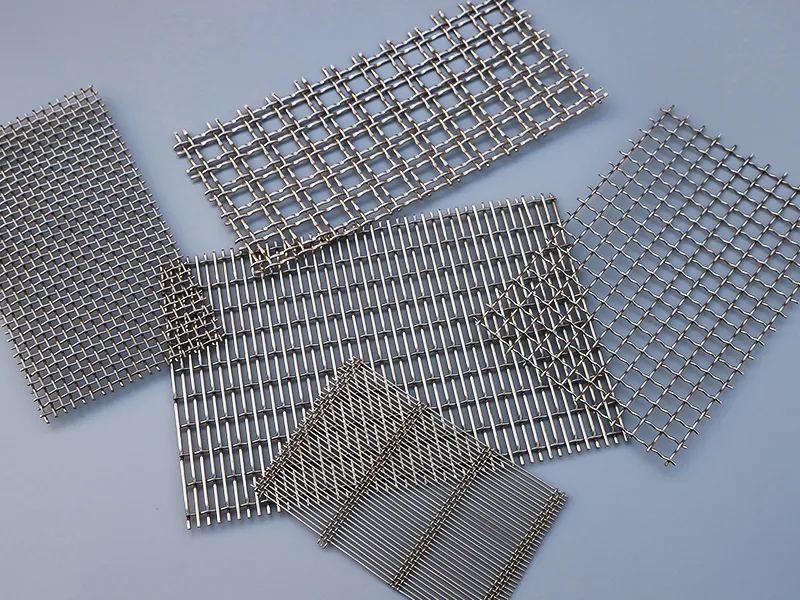

Square weaves are made of stainless steel or other material combinations. At GFE we are produced as plain weave or twilled weave. The apertures range between 0.025 mm and 14 mm as standard. Depending on the aperture, production widths of between 1.3 m and 6m are possible. Standard materials are stainless steels 316 / 316 L as well as 304 / 304L. Intelligent material combinations are employed in hybrid meshes in order to optimize the properties. These meshes are manufactured in accordance with DIN ISO 9044 for industrial wire mesh.

Mesh	Wire Diameter		Width Of Opening	Opening Area %
Mesh	mm	inches	Width Of Opening	Opening Area %
4×4	1.00	.3937	5.35	0.71
4×4	1.50	.5906	4.85	0.58
5×5	1.00	.3937	4.08	0.65
6×6	1.00	.3937	3.23	0.58
8×8	0.70	.2756	2.48	0.61
8×8	0.80	.3150	2.38	0.56
8×8	1.00	.3937	2.18	0.47
10×10	0.56	.2205	1.98	0.61
10×10	0.90	.3543	1.64	0.42
10×10	1.00	.3937	1.54	0.37
12×12	0.50	.1969	1.62	0.58
12×12	0.60	.2362	1.52	0.51
12×12	0.80	.3150	1.32	0.39
14×14	0.50	.1969	1.31	0.52
16×16	0.37	.1457	1.22	0.59
16×16	0.63	.2480	0.96	0.36
18×18	0.40	.1575	1.01	0.51
18×18	0.50	.1969	0.91	0.42
20×20	0.30	.1181	0.97	0.58
20×20	0.40	.1575	0.87	0.47
20×20	0.45	.1772	0.82	0.42
20×20	0.50	.1969	0.77	0.37
25×25	0.40	.1575	0.62	0.37
30×30	0.24	.0945	0.61	0.51
30×30	0.30	.1181	0.55	0.42
30×30	0.45	.1772	0.40	0.22
35×35	0.21	.0827	0.52	0.50
35×35	0.28	.1102	0.45	0.38
40×40	0.2	.0787	0.44	0.47
40×40	0.23	.0906	0.41	0.41
40×40	0.25	.0984	0.39	0.37
40×40	0.40	.1575	0.24	0.14
50×50	0.20	.0787	0.31	0.37
50×50	0.23	.0906	0.28	0.30
60×60	0.12	.0472	0.30	0.51
60×60	0.16	.0630	0.26	0.39
60×60	0.18	.0709	0.24	0.33
70×70	0.14	.0551	0.22	0.38
80×80	0.125	.0492	0.19	0.37
80×80	0.14	.0551	0.18	0.31
90×90	0.10	.0394	0.18	0.42
100×100	0.08	.0315	0.17	0.47
100×100	0.10	.0394	0.15	0.37
100×100	0.11	.0433	0.14	0.32
120×120	0.08	.0315	0.13	0.39
120×120	0.09	.0354	0.12	0.33
135×135	0.063	.0248	0.13	0.44
150×150	0.063	.0248	0.11	0.39
180×180	0.05	.0197	0.09	0.42
187×187	0.056	.0220	0.08	0.35
200×200	0.05	.0197	0.08	0.37
200×200	0.06	.0236	0.07	0.28
250×250	0.04	.0157	0.06	0.37
300×300	0.035	.0138	0.05	0.34
300×300	0.03	.0118	0.05	0.42
325×325	0.035	.0138	0.04	0.30
325×325	0.03	.0126	0.05	0.35
400×400	0.03	.0118	0.03	0.28
400×400	0.025	.0098	0.04	0.37
500×500	0.025	.0098	0.03	0.26
500×500	0.018	.0071	0.03	0.42
635×635	0.02	.0079	0.02	0.25
